Drone-Mounted Infrared Technology
See What’s Hidden in
Your Building Envelope
Drone-mounted thermal cameras reveal heat loss, moisture intrusion, and insulation defects — without a single hole in your wall.
Why Building Envelope Performance Matters
The building envelope is the single biggest lever for energy efficiency — and the hardest problem to see without the right tools.
63.6%
of Canadian home energy use goes to space heating
This makes the building envelope — walls, roof, windows, and foundation — the most impactful place to invest in energy efficiency. A single infrared inspection identifies exactly where heat is escaping and what it costs you annually.
Source: Natural Resources Canada
What Thermal Imaging Reveals
Infrared radiation doesn’t lie. We capture what the naked eye cannot see.
🔥
Thermal Bridging
Structural members — studs, headers, rim joists, and fasteners — conduct heat far better than insulation. Thermal bridges appear as regular high-temperature stripes in the infrared image and can account for 20–40% of total assembly heat loss.
🧊
Insulation Voids & Deficiencies
Settled, compressed, or missing insulation creates large uniform hot zones on the building exterior. Our drone survey maps the entire envelope in a single pass — voids above ceilings, within wall cavities, and at hard-to-reach building corners are all captured.
💧
Air Infiltration & Moisture
Air leaks and moisture ingress produce characteristic cold signatures around penetrations, window frames, and rooflines. Left unaddressed, moisture intrusion leads to mould growth, structural rot, and sharply elevated heating loads — all detectable early with infrared.
How an Inspection Works
Optimal results require specific thermal conditions — we coordinate timing to maximise contrast and defect visibility.
01
Survey Flight
Our DJI M30T drone systematically covers the entire building envelope — walls, roof, parapets, and penetrations. Flights are scheduled during optimal delta-T conditions (typically 10°C+ difference between interior and exterior) to maximise thermal contrast.
02
Dual-Sensor Capture
Simultaneous high-resolution visual and thermal data is captured from every angle. The thermal sensor operates at 640×512 resolution and quantifies surface temperatures across the full envelope to ±2°C accuracy, with the visual image providing exact location context.
03
Expert Analysis & Report
ANSI/ASNT-certified thermographers analyse every frame. Anomalies are catalogued, located on a building plan, photographed in both spectra, and prioritised by severity. You receive a comprehensive report with annotated imagery and a clear remediation roadmap.
Infrared Advantages
Real thermal data captured in the field — heat signatures from actual building inspections.
Technology & Credentials

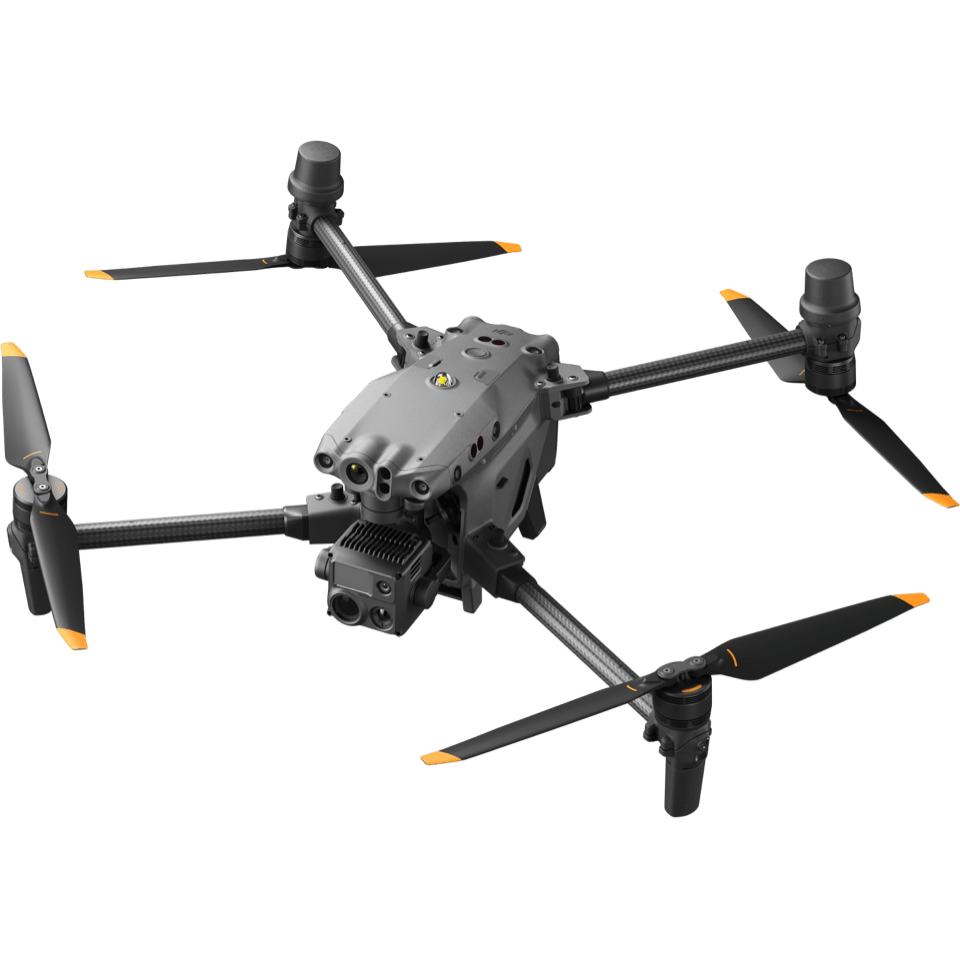

DJI M30T — Enterprise Thermal Platform
We deploy the DJI M30T — the same thermal drone platform trusted by industrial inspection teams worldwide. Its integrated sensor suite captures simultaneous visual and thermal data with no parallax offset, enabling pixel-accurate defect location across the full building envelope.
■ 640×512 radiometric thermal sensor (−20°C to +550°C)
■ 48 MP visual camera with ±2°C temperature accuracy
■ IP55 weatherproof — operable in rain and cold
■ Laser rangefinder for precise defect geo-location
ANSI/ASNT CP-105 & CP-189 Certified
Our thermographers hold NAIS-approved certifications meeting the most rigorous North American standards for infrared inspection quality and professionalism.
What You Receive
Every inspection delivers a professional, actionable report you can hand directly to your contractor or building committee.
→ Annotated thermal and visual imagery for every anomaly
→ Defect catalogue with GPS location and severity rating
→ Surface temperature measurements at each defect zone
→ Estimated heat loss impact and annual energy cost
→ Prioritised remediation recommendations
→ Pre/post-remediation comparison available on request
Ready to See Your Building Clearly?
Pricing, scheduling, and turnaround tailored to your building size and location.
Sample Inspection Summary
Commercial Building — 3-Storey Residential
Anomaly zones detected
23
Critical (heat loss >30%)
4 zones
Moisture signatures
3 locations
Estimated annual heat loss
24,800 kWh
Insulation voids
9 areas
Estimated savings (post-fix)
~$1,860 / yr
